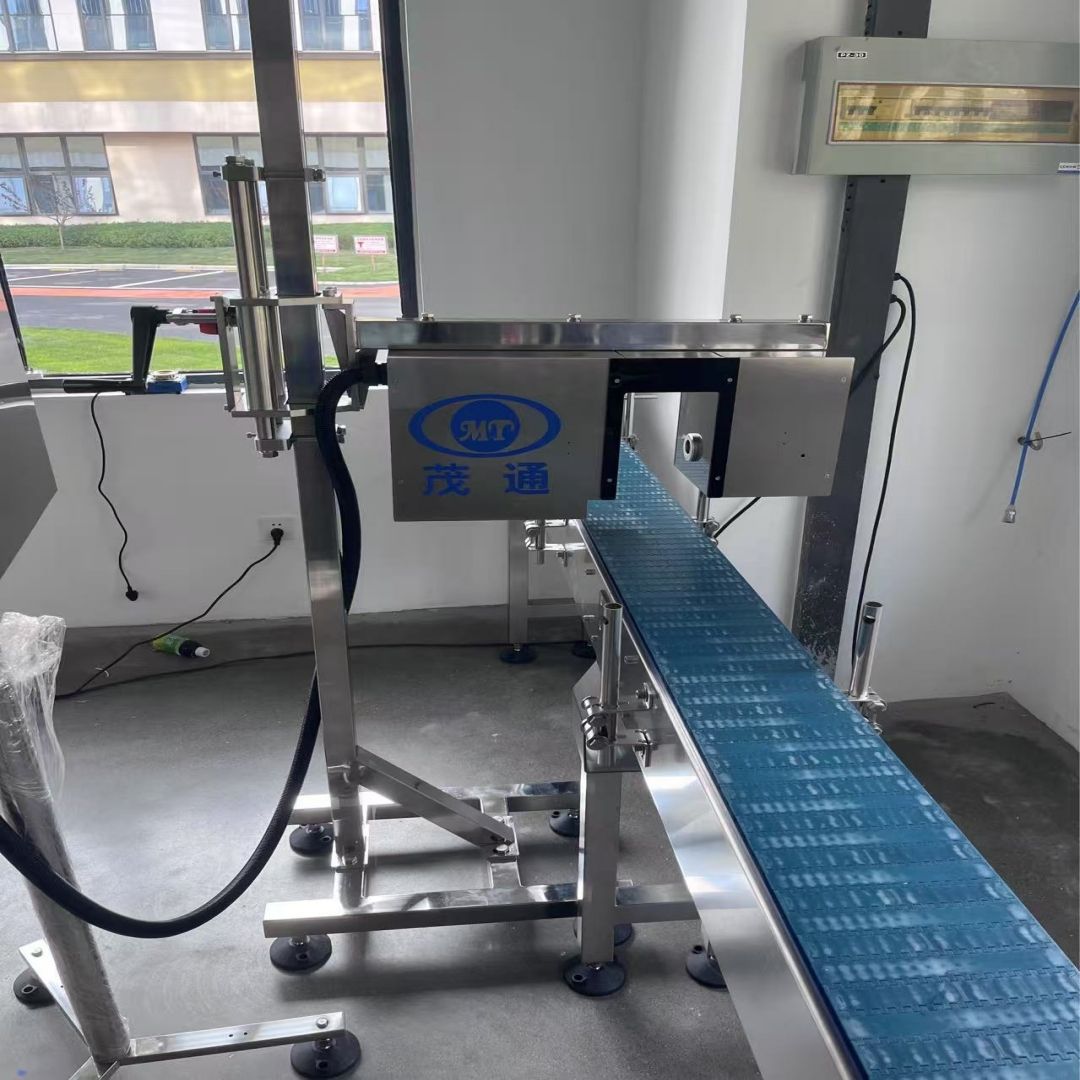

Liquid level inspection machine Can liquid level inspection equipment Online high-speed inspection instrument

Liquid level inspection machine can liquid level detection equipment online high speed detector
The liquid level tester is installed on food and beverage production lines to detect whether the liquid level in cans meets standards. These devices monitor the liquid level in cans in real time using X-ray technology or other non-contact methods to ensure that the liquid level is within specified error limits. If the liquid level deviates from the error value, the equipment will automatically eliminate unqualified products to ensure product quality.‌
  These devices are suitable for all types of cans, including tin cans, aluminum cans, etc. They support the detection of low levels and feature high accuracy and fast detection. For example, can level detector accuracy up to 0.75mm, detection speed up to 1500 bottles/min‌
In addition, these devices are also suitable for glass bottles, ceramic bottles, plastic bottles and other types of containers.
The importance of cans detection
Food safety: cans are in direct contact with food, so the safety of their inner coatings and materials is critical to food safety. Testing ensures that cans do not release harmful substances, such as heavy metals such as lead and cadmium, during production and use.
Improve product quality: By testing the appearance, performance, pressure and other aspects of cans, problems in the production process can be found and corrected in time, thus improving the overall quality of products.
Improve consumer trust: Qualified test results can enhance consumer trust in products and reduce complaints and returns due to quality problems.
 When the container passes through the X-Ray emitter, the emitter emits a constant X-ray beam penetrating the container, and the product level is distinguished by detecting the X-ray energy intensity after passing through the product. If the liquid level of the product is normal, flow into the next production process; if the liquid level deviates from the error value, remove the product.
Suitable for tin cans, aluminum cans, glass bottles, ceramic bottles, plastic bottles, etc.
It has the following advantages:
(1) Products can be quickly converted
(2) Suitable for transparent, non-transparent, irregular bottles and other types of bottles
(3) high detection accuracy,(can tin accuracy of± 0.5mm, glass bottle accuracy of± 0.95mm)
(4) Fast speed, up to 1500 bottles/min (bottle type 65mm calculation)
(5) Defective product display position and automatic elimination function
(6) Full Chinese color touch screen operating system
Technical parameters of liquid level detector:
1. Power supply: 220V
2. Model: MT-x1500
3 Detection range: 20-1000ml
4. Humidity: 0-90% No condensation
5. Support high and low liquid level detection at the same time, detection range support (range) 8 mm.
6. Scope of application:
            The product contains flowable liquid and no floating solids. The diameter of the product is 0- 110 mm.
            If the inner wall of the product is made of metal, samples shall be provided for testing.
7. The false rejection rate of qualified products: the false rejection rate due to the high-speed movement of products and the shaking of conveyor belts does not exceed 2 per thousand; the liquid level inspection machine is an essential production quality inspection equipment on the can production line, and this equipment can be used for online high-speed inspection without stopping.
